Truma iNet X Panel

Central operating system for retrofitting

The Truma iNet X Panel is the central control panel of the iNet X System for retrofitting. The panel is therefore the key to our new technology that makes your vehicle smart.

Maximum ease of use thanks to 4.3" colour touch screen

Particularly intuitive menu navigation in 6 languages

Mobile networking thanks to the corresponding app

Integrated service: Assistance instead of cryptic error codes

Always up to date thanks to updates and extensions

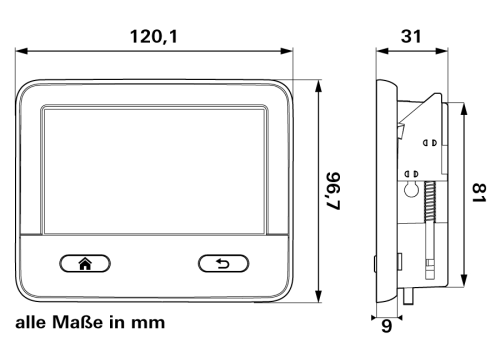

Technical Details

Power supply

12 V (8 V – 16 V)

Power consumption

1.5 W (approx. 130 mA)

Display

4.3 inch resistive

Interfaces

TIN bus, CI bus, CAN bus

Bluetooth

Class 2

Highlights

Can be controlled via Bluetooth

Intuitive and simple operation

Integral part of the iNet X System

The core of the Truma iNet X System and the first step to a smart camper van.

The Truma iNet X Panel is the central control panel of the iNet X System for retrofitting. The panel is therefore the key to our new technology that makes your vehicle smart.

Highlights of the Truma iNet X Panel at a glance:

Central control unit: manage your appliances with just one operating system
Full overview: always keep an eye on your indoor climate and notifications
Future-oriented: subsequently add new appliances and services by means of updates
Connected on the move: also use your smartphone for advanced control
Independently on track: eradicate malfunctions independently, thanks to detailed error descriptions
Quality you can trust: benefit from regular optimisations

What are the benefits of retrofitting to the Truma iNet X Panel?

The Truma iNet X Panel is our central operating system for retrofitting, it is best suited to users who already own Truma CP plus and Truma CP classic. It offers the option of switching from the static iNet System to the future-proof, open system solution of the iNet X System.

The Truma iNet X Panel enables products compatible with Truma and other appliances to be connected and controlled with a central control panel.

Easier operation: control with the Truma iNet X Panel is much easier than with the preceding system: mechanical control knobs are a thing of the past, as all functions are controlled conveniently and intuitively via the 4.3” colour touch display in the clearly laid out menu.
Bluetooth-enabled: the Bluetooth connection to the control unit runs directly via the Truma iNet X Panel itself. The iNet Box used to be required in the preceding iNet system.
Updatable: downloading updates is a piece of cake with the Truma iNet X App. Meaning your operating system will continue to get smarter and better step by step.

Do you fancy controlling your heater from the ski slopes? Remote control from the ski slopes – this will also be possible in future with the Truma iNet X System. We are currently working to find the right way to implement and produce this function.

Retrofitting pays off: the update capability and constant further developments are a big step forward and future-proof the panel. The prerequisite is that the infrastructure for it is available and the connected appliances are compatible. We recommend contacting your dealer directly about this. At initial overview can be found in our compatibility list.

Scope of functions of the Truma iNet X Panel

The scope of function varies depending on the vehicle equipment. A basic scope is currently available, which is being constantly expanded. Additional appliances or services can also be smoothly integrated following installation in the vehicle.

Current basic scope

Operation of Truma appliances^*
Operation of third-party air conditioning systems^*
Automatic climate control
Inside and outside temperature display^**
Precise fault description with advice on independent solutions
Control possible via app

A list of all compatible appliances can be found in our compatibility list.

^*may vary depending on vehicle equipment.
^**Only possible with the “iNet X room temperature sensor”

Control your heater from the ski slopes – this will also be possible in future with the Truma iNet X System

From our experience in this sector and the many interviews we have conducted, we are aware that remote control is an absolutely necessity. We are currently working to find the right way to implement and produce this function.
Owing to the current situation, we are not able to specify a fixed date but we will let you know as soon as we have any news

Maximum ease of use, thanks to 4.3” colour touchscreen
Particularly intuitive menu guidance in six languages
Connected on the move, thanks to corresponding app
Service integrated: instructions rather than cryptic fault codes
Always up to date with extensions and updates

Sophisticated menu guidance and user interface

The system features a rather intuitive design, meaning you will quickly find your feet with it. What’s more, lots of small details await you, make camping even smarter and more comfortable.

The exact range of functions depends on whether a Truma iNet X Panel or a Truma iNet X Pro Panel is installed and which appliances are connected in the vehicle.

Please note: We are optimising our system on a continual basis, meaning that changes may be made to the user interface and your panel may not look exactly like the ones in our images.

Intuitively operate the sophisticated touch display

Tile view of all appliances and functions for the full view
Intuitive menu guidance in six languages

Centrally control the indoor climate

The heater, cooling, automatic climate control and ventilation can be monitored and controlled in a central view
Conveniently adjust the target temperatures using +/-
Energy source can be chosen simply and quickly: Gas, diesel, electrical or mixed mode

Adjust appliance settings in line with individual requirements

To get a better night’s sleep: Night Mode enables particularly quiet operation
The ventilation intensity can be conveniently controlled in different levels
Colour pulsing rings indicate the heating (red) or cooling process (blue)

Heat water quickly in an energy-saving manner

Three target temperatures for precisely heating water in an energy-saving manner based on your individual use

Instructions for use make it easier to select the right heating level:
- Dish washing: 40 °C
- Single shower: 60 °C
- Several showers: 70 °C
Turbo mode: Start extra fast heating with just your fingertip

Troubleshooting help in the event of malfunctions

Rather than cryptic fault codes in the event of malfunctions, specific instructions with details on the possible cause make it easier to eradicate malfunctions yourself. For instance, information appears indicating that the gas heater is not currently working as the gas is empty.
Nevertheless, Truma Service is more than happy to help if you are not able to solve the issues yourself.

Free app that works with the Truma iNet X Panel

Mobile version of the Truma iNet X Panel: the Truma iNet X App has the same basic functions as the Truma iNet X Panel. If the temperature gets chilly overnight, you can conveniently set the heater to a higher level without having to get out of bed. What’s more, advanced control and configurations are available. Additional practical features will also be added on a continual basis.
Connection via Bluetooth: the connection is currently via Bluetooth. In future, remote control will also be possible.
Prerequisite for updates: the iNet X App is required for downloading software updates to the Truma iNet X Panel. This makes it possible to effortlessly connect further appliances in future and to integrate all new smart services.

FAQ

How does the replacement of the Truma CP plus control panel with the iNet X Panel work?
- To replace the control panel, the existing Truma CP plus control panel opening must be extended; a template is not required for this.
- No drill holes need to be made, as the Truma iNet X panel is inserted via clamping slides.
- The TIN cable can continue to be used, the 12-volt supply must be ensured via the connection cable supplied.
IMPORTANT: Installation, removal or conversion work may only be carried out by qualified personnel.
What are the requirements for retrofitting to the Truma iNet X Panel?

If a Truma CP plus or Truma CP classic is currently installed in the vehicle, it is possible to retrofit the Truma iNet X panel. The prerequisite is that the infrastructure for this is available and the connected devices are compatible. The best thing to do is to contact your dealer directly. You can also get an initial overview in our compatibility list.

If a Truma CP plus CI bus is installed in the vehicle, which is controlled directly by the vehicle manufacturer, retrofitting is unfortunately not possible without further ado. Your dealer will tell you whether this is the case.
How are new system updates applied to the iNet X panels?
New updates for the Truma iNet X Panel and the Truma iNet X Pro Panel are made available via the Truma iNet X Cloud. With the Truma iNet X App, these can be played on the panel with a mobile end device. An Internet connection and a Bluetooth connection are required for this.

Step-by-step instructions for the software update:
1. Establish an Internet connection with the mobile end device.
2. Install or update the app on the mobile device.
3. Switch on the control unit and establish a Bluetooth connection between the control unit and the mobile end device.
4. If a software update is available for the control panel, this is displayed in the app. In this case, connect the mobile end device to the corresponding power supply or ensure that the battery is sufficiently charged.
5. Stay within Bluetooth range of the control unit during the update.
6. Follow the instructions in the app and on the control panel.
7. The update may run in the background and take up to 15 minutes.
8. As soon as the update has been completed successfully, a corresponding message is displayed. If the update is not successful, the last installed software will be used to ensure safe operation of the control panel.

Find more information in our Help-Center.
