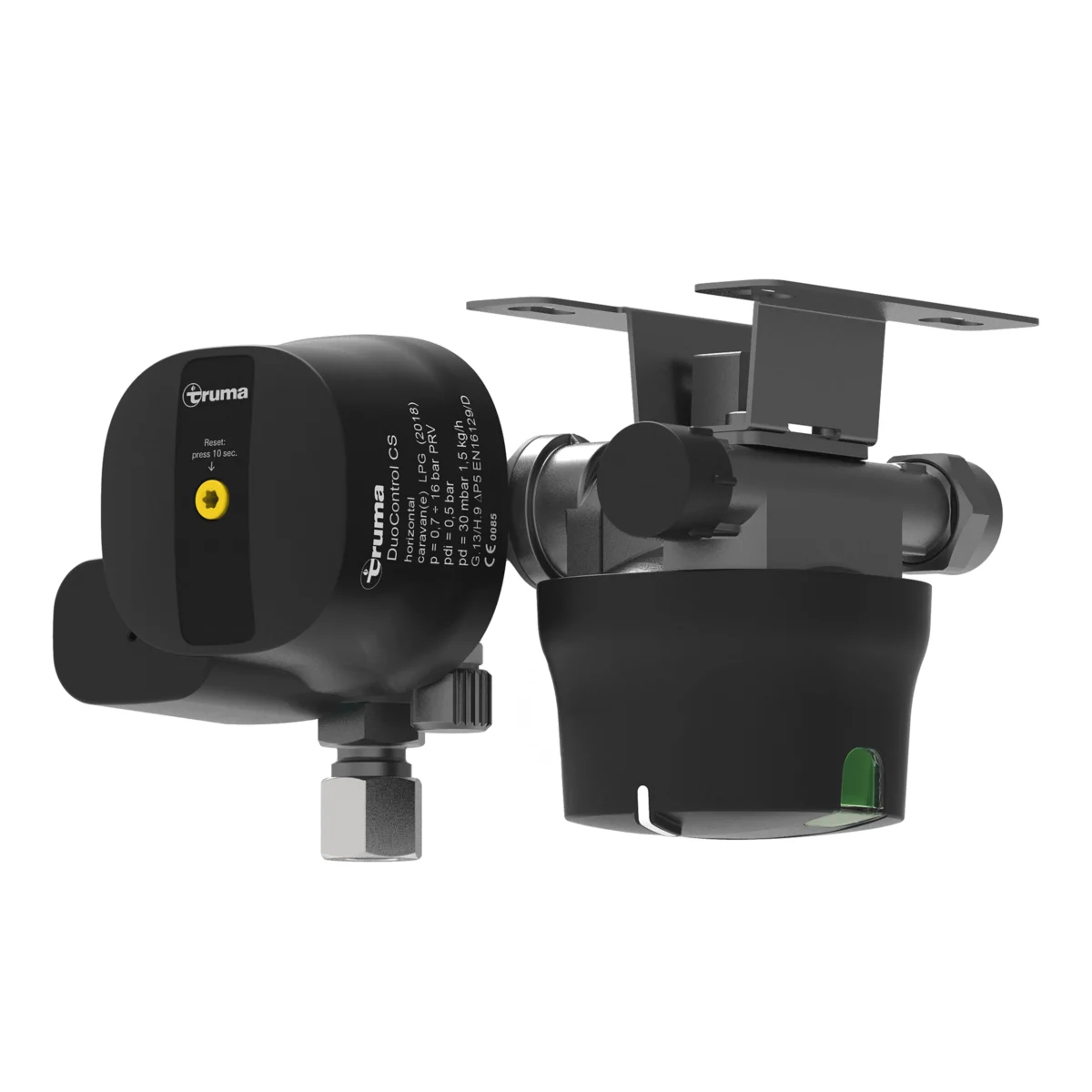

DuoControl CS

Gas pressure regulator with crash sensor for two-cylinder operation

van to the new generation of Truma DuoControl CS gas pressure regulators. The system automatically switches over to the second gas cylinder when the operating cylinder is empty. The integrated crash sensor allows you to heat your vehicle safely while you’re driving. It prevents gas escaping should you be involved in an accident.

Indicates which cylinder is in operation
Automatically switches from empty to full gas cylinder
Easily detect and reset triggered crash sensor
For safe mobile and stationary operation
Low weight
Quick installation possible

Technical Details

Energy sources
Propane / butane
Inlet pressure
0.7 – 16 bar
Outlet pressure
30 mbar
Regulator output
max. 1.5 kg/h
Regulator inlet
male thread M20 x 1.5 (G. 13)
Regulator outlet
olive screw connection 8 mm or 10 mm (H. 9)
Crash sensor triggering value
4.0 g +/- 1.0 g
Dimensions (L x W x H)
84 x 95 x 103 mm (vertical) 104 x 158 x 116 mm (horizontal)

Highlights

More details about the DuoControl CS gas pressure regulator

van to the new generation of Truma DuoControl CS gas pressure regulators. The system automatically switches over to the second gas cylinder when the operating cylinder is empty. The integrated crash sensor allows you to heat your vehicle safely while you’re driving. It prevents gas escaping should you be involved in an accident.

If the crash sensor has been triggered, you can reset it yourself. So that the gas pressure regulator system is ready for operation again quickly, simply press the yellow reset button on DuoControl CS.

The regulator output is 1.5 kg/h, which is suitable for maximum consumption. You don’t have to calculate appliance consumption or the flow rate of the gas system.

FAQ

  • What do I have to consider if I want to use my gas-operated appliances while driving?

    With motor homes as of construction year 01/2007, in accordance with the heating equipment directive 2001/56/EC with annexes 2004/78/EC and 2006/119/EC for the operation of a liquid gas heater while driving, a safety shut-off device must be provided that prevents gas from inadvertently escaping if a line breaks in the event of an accident.

    In combination with high-pressure gas hoses with integrated hose rupture protection (HRP), the Truma MonoControl CS and DuoControl CS gas pressure regulators (with integrated crash sensor) comply with all of the relevant standards, regulations and directives and therefore allow the gas system to be used throughout Europe, also while driving. We recommend that you use a safety device also in caravans for heating while driving.

    For vehicles manufactured before 01/2007 there are no restrictions for operating the gas system while driving. This does not apply in France where operation of a gas system while driving is only permitted in type-tested vehicles with initial registration from 1/1/2007. In older vehicles, operation of a gas system while driving is not permitted, even in combination with a safety shut-off device.

  • How often must the gas system of a caravan or motor home be checked?

    In Germany, the gas system must be inspected every two years by an LPG expert (DVFG, TÜV, DEKRA). This is documented with an inspection certificate (G 607) and an inspection plate.
